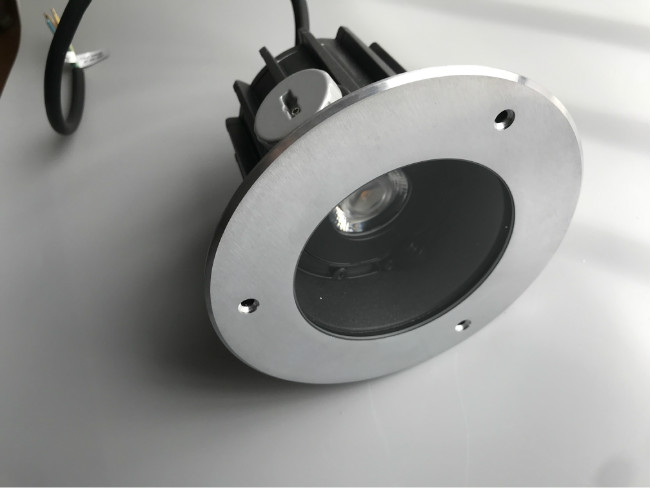

TRIAC Dimmable In Ground CREE COB LED Recessed Light

Product Categories
A.L Lighting Limited
Contact Now

TRIAC Dimmable In Ground CREE COB LED Recessed Light

Brand Name : A.L

Model Number : AL-F2BH

Certification : CE,RoHS

Place of Origin : Guangdong,China

MOQ : 20pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2,000pcs per day

Delivery Time : Sample and small order 2-4workdays,bulk order 8-12 workdays

Packaging Details : Thick cartons +PE bage+pearl wool with light fixed shape

LED Type : CREE COB LED

Input : 24V;120V;240V

Material : 316 Stainless Steel,Die-casting Aluminum

Cable Length : 0.5m or Customized

Warranty : 5 years

Contact Now


5 Years Warranty CREE COB LED Adjustable In-ground Recessed Light With Triac Dimmable


Product Overview

The adjustable led recessed ground light is a high-grade architectural outdoor lighting products.Avaliable in 12/24V safe low voltage and 120-240V high voltage.The light is adjustable which means you can use a tool to adjust the lighting direction to the best angle of the building.It also designed with deep luminant light source which is non-glare and friendly to eyes.We choose every components based on at least 5 years warranty.And our engineers always trying the best to make the lighting effect meet different customer's special beautiful lighting requirements.


Quick Details

  1. Power:10W 15W 20W 25W 40W
  2. Voltage:12/24VDC,120V,240V
  3. Beam Angle:18/24°/38°/60°
  4. Adjustable:Yes
  5. Dimmable:Triac,DALI,PWM,0-10V
  6. Color Temperature:2200K 2700K 3000K 4000K 5000K


Technical Datas

Model No. AL-F2H
Input Voltage 24V,120V,240V
Color Warm White/Natural White/White/RGB 3in1 DMX512/RGBW 4in1 DMX512
Color Temperature 3000K 4000K 5000K
LED Chip OSRAM/CREE High Power LED
LED Qty 1pcs/3pcs/6pcs/9pcs/12pcs/18pcs
Beam Angle 8/15°/30°/40°/60°
Dimmable YES
IP Grade IP67
Front Cover 316 Stainless Steel
Housing Die-casting aluminum
Sleeve ABS
Certification CE,RoHS
Warranty 5 years



Material & Manufacturing Technique

Housing: 12# Die-casting grey powder coated aluminum with American brand TIGER spray paint.
Surface cover: Stainless steel sus316L# coated with Titanium.
Gasket: Tooling shaped seal
Glass: Step tempered galss,T=8mm
Cable gland: IP68 PG-9 copper with nickel-coated.
LED: High power LED
Driver: Constant current input and output (ACTEC Brand)
Applicaation environment: -20℃-40℃
Power cable:

24VDC low voltage:H05RN-F 2x1.0mm² L=0.5M
110-120V,220-240V:H05RN-F 3x1.0mm² L=0.5M
Mounting Sleeve: ABS



Product Features

  1. Deep LED light source non-glare lighting,friendly to eyes,reduce lighting pollution.
  2. Easy to adjust the lighting direction,light the building more accurate.
  3. High level material and components,5 years warranty,energy-saving and cost-effective.
  4. Various lighting control accessories to meet different lighting effect requirements.
  5. Imported American brand TIGER spray paint,pass over 1000h+ salt spray test.
  6. DMX512,TRIAC,DALI,1-10V,PWM dimmable,RGBW 4in1 DMX512 220V optional.



Item No. Information

Model No. Dimension Colors Voltage Power
AL-F2BHB

Light:D130xH133mm

Cutting hold:D119mm

 Single Color 12/24VDC 1x10W
AL-F2BHC

Light:D160xH153mm

Cutting hold:D147mm

 Single Color 24VDC 120/240V 1x15W
AL-F2BHD

Light:D180xH162mm

Cutting hold:D165mm

 Single Color 24VDC 120/240V 1 x 20W
AL-2FBHE

Light:D210xH181mm

Cutting hold:D193mm

 Single Color 24VDC 120/240V 1 x 25W
AL-2FBHF

Light:D250xH190mm

Cutting hold:D223mm

 Single Color 24VDC 120/240V 1 x 40W



Photoes

mported American brand TIGER spray paint,pass over 1000h+ salt spray test.
TRIAC Dimmable In Ground CREE COB LED Recessed Light

Lighting direction adjustable
TRIAC Dimmable In Ground CREE COB LED Recessed Light

Hight power led & COB led optional
TRIAC Dimmable In Ground CREE COB LED Recessed Light

Stainless steel sus316L# coated with Titanium surface cover.
TRIAC Dimmable In Ground CREE COB LED Recessed Light


Application

Light walls,Facades,Columns,Bridges,Monuments,Trees,Sculpture,Garden,Square,Road


TRIAC Dimmable In Ground CREE COB LED Recessed Light
